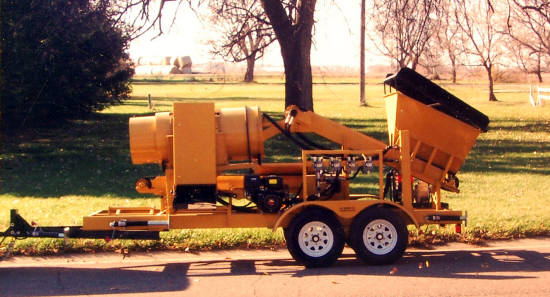

Oregon Pioneer-15 YpH Portable Trommel

OREGON PIONEER 15

Untitled Document

Gold Nugget from Alaska.

Good Luck!

Other, related equipment by Geolaser

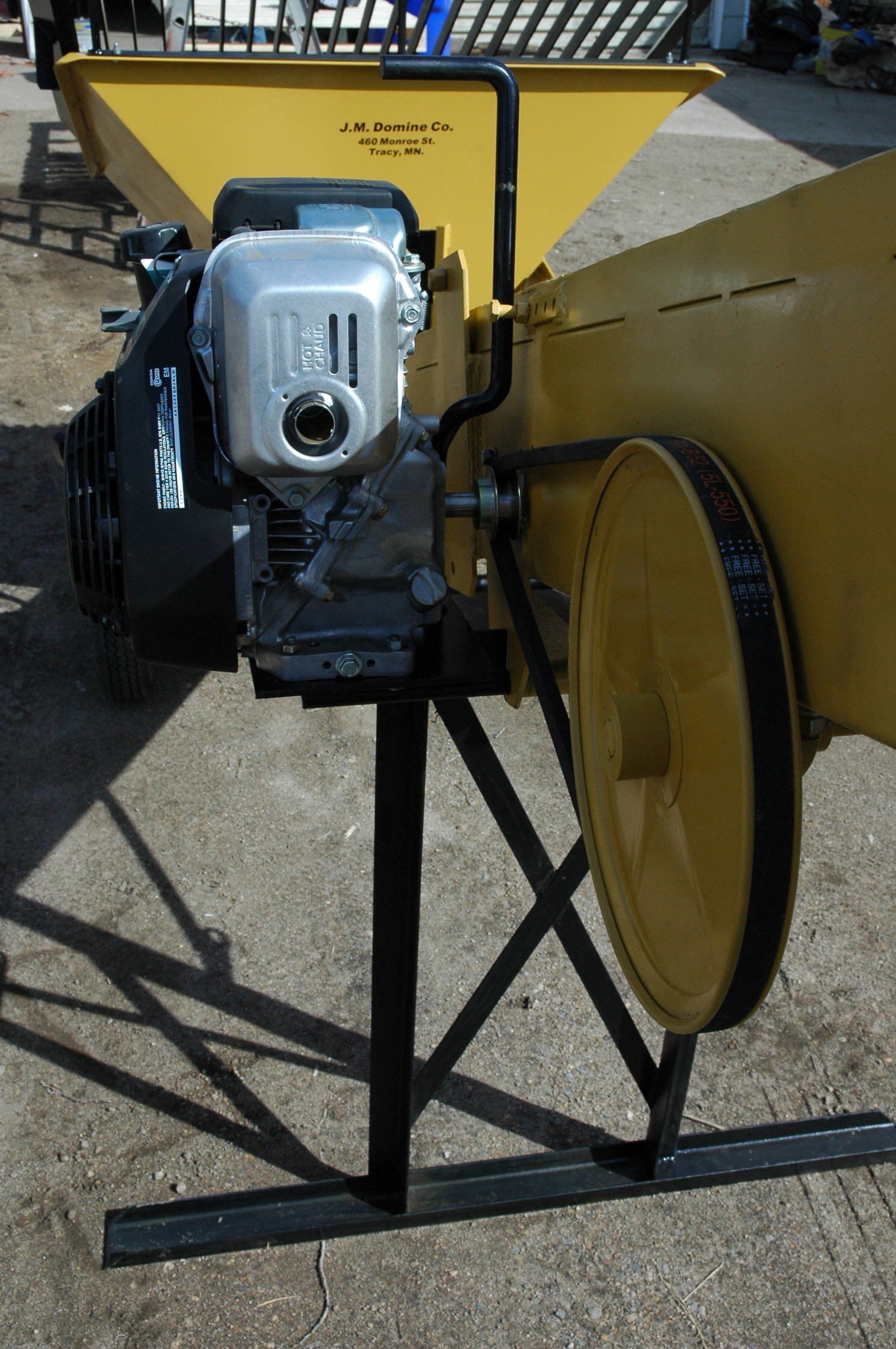

- 13HP OHC w/ Electric Start Engine w/ Single Hydraulic Pump
- 15 gallon Reservoir
- 6' Feed Conveyor w/ Self Cleaning Return
- Oscillating sluice box 18" wide 6' long (2 each 3' sections)
- Trommel drum 5' long x 2' diameter with 2' high tensile 3/8" screen

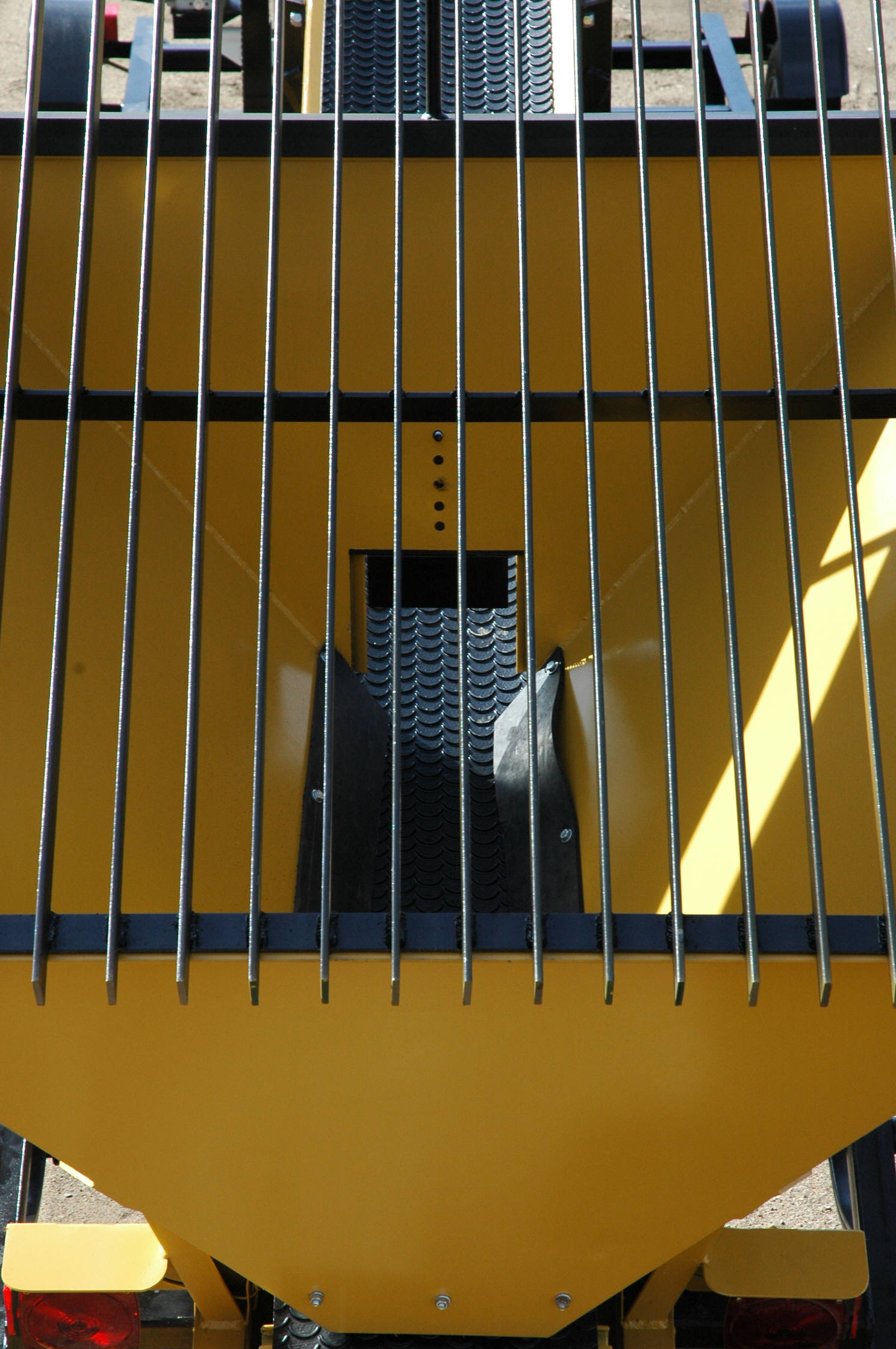

- Grizzly 50" long 59" wide 2" bar spacing
- Self supporting discharge conveyor 12" wide 90" long
- 3 Flow Controls (Trommel, Feed & Discharge)
- Sealed Centric Locking Pillow Block Bearings
- 4 Stabilizing Jacks
- High Tensile Trommel Screen w/ 3/8" openings
- Hydraulic Filter
- DOT Approved Trailer Lights
- Adjustable Tongue Height
- Supply Quick Disconnect
- Clean up Water Supply Connect w/ Valve
- Tandem Axle w/ 205/75/D14 Tires
- Easy Lube Axle w/ Joined Equalizers
- Two-Week Delivery/mfr.time

Gold is where you find it! We have recognized the need to build a machine, The Oregon Pioneer, that is compact enough to travel, tough and reliable enough to be considered a production machine & easy to maintain!

The "Oregon Pioneer" is the only small production, flexible discharge, hydraulic machine on the market. It is easily portable and was designed and manufactured for a small production or pilot processing operation, particularly for the gold mining industry. The sluice and discharge conveyor are independently interchangeable, allowing either or both discharges to be placed on either side of the machine. This facilitates an easy set up in only a matter of minutes with this truly portable production machine.

If you are an independent or small scale operation, this is an ideal solution for your production needs. If you have scaled up operations, the "Oregon Pioneer" is also an ideal machine for use as a pilot plant for testing prior to applying for time consuming permits and moving larger equipment onto a prospective property. With an estimated production of 8-15 yards per hour, the Oregon Pioneer could be the answer to your mining needs!

Price: $ 22,850 - FOB manufacturer

Oregon Pioneer 15 Specifications

Oregon Pioneer 15 Options

- Replacement Screens
- Water Supply Pump & Hose
- Spare Parts Package
- Hydraulic Tip Grizzly
- Floor Storage Compartment
- Hydraulic Outriggers
- 48 x 20' Stationary Sluice with Adjustable Pitch
- Diesel Engine
- Security Cover for Sluice
- Security Cover for Motor & Controls

OWNER'S MANUAL for OREGON PIONEER 15
(PDF, 27 pages, 1.73 MB)

Click Images to Zoom

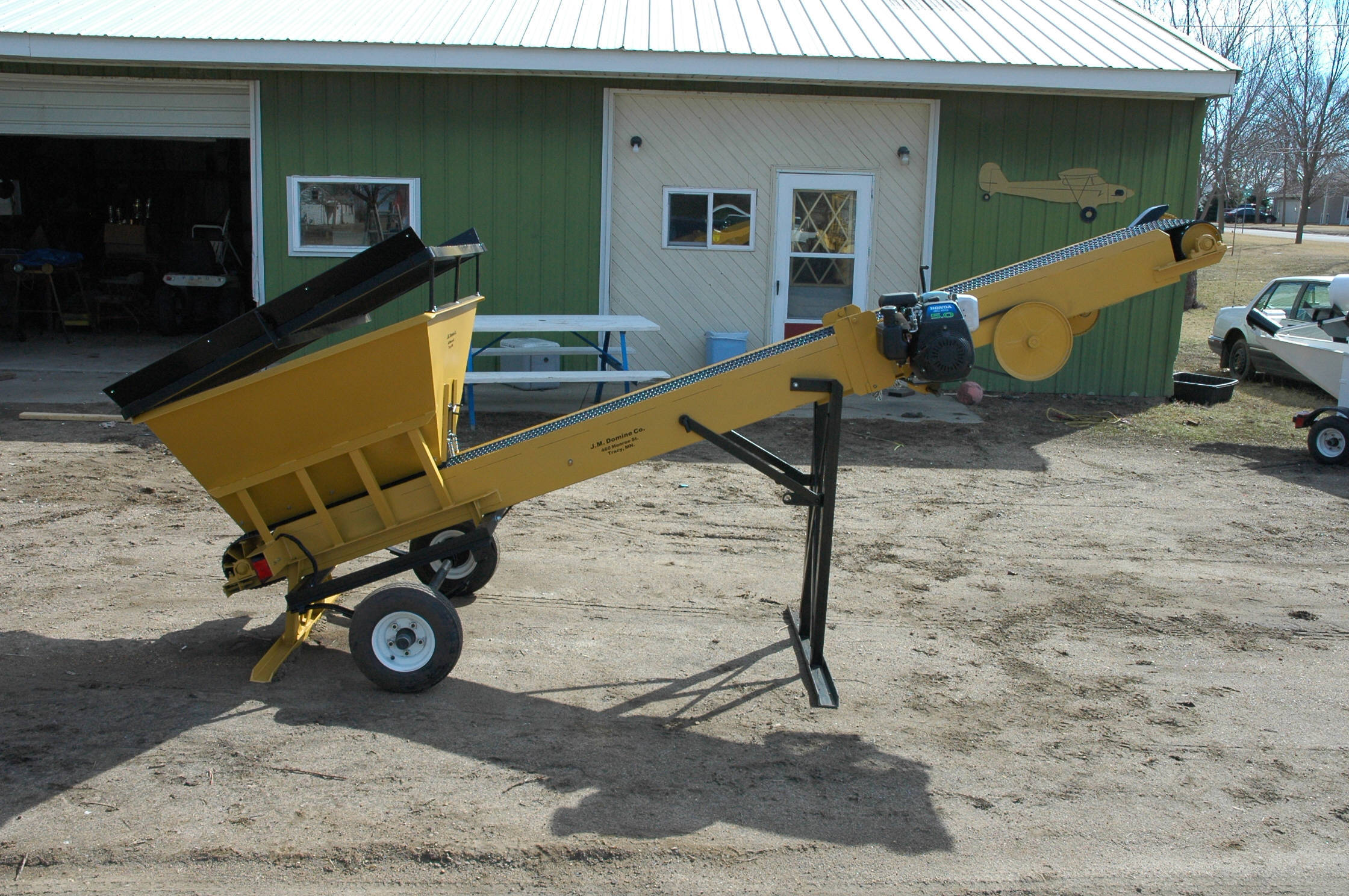

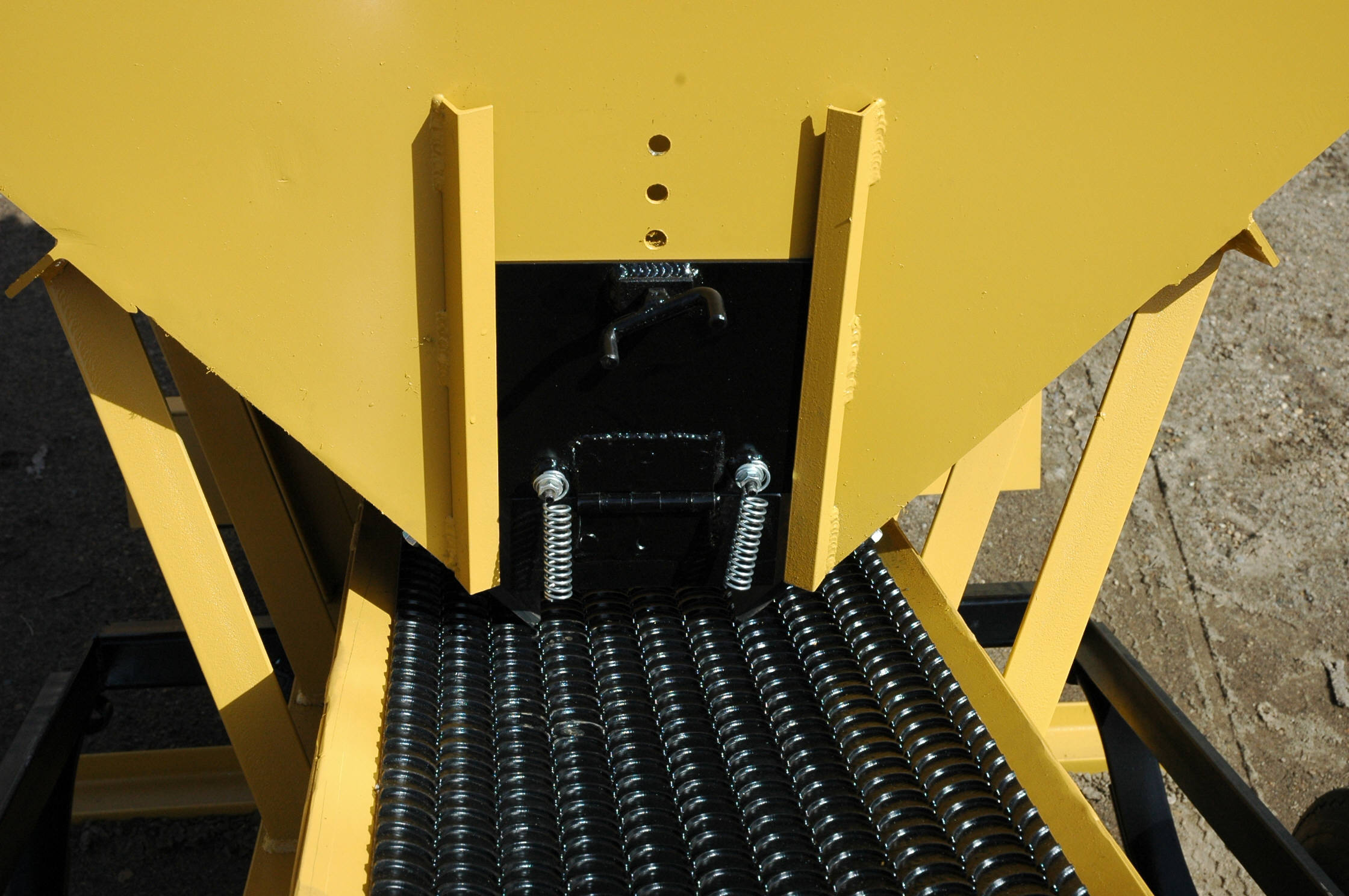

12-feet Feed Conveyor

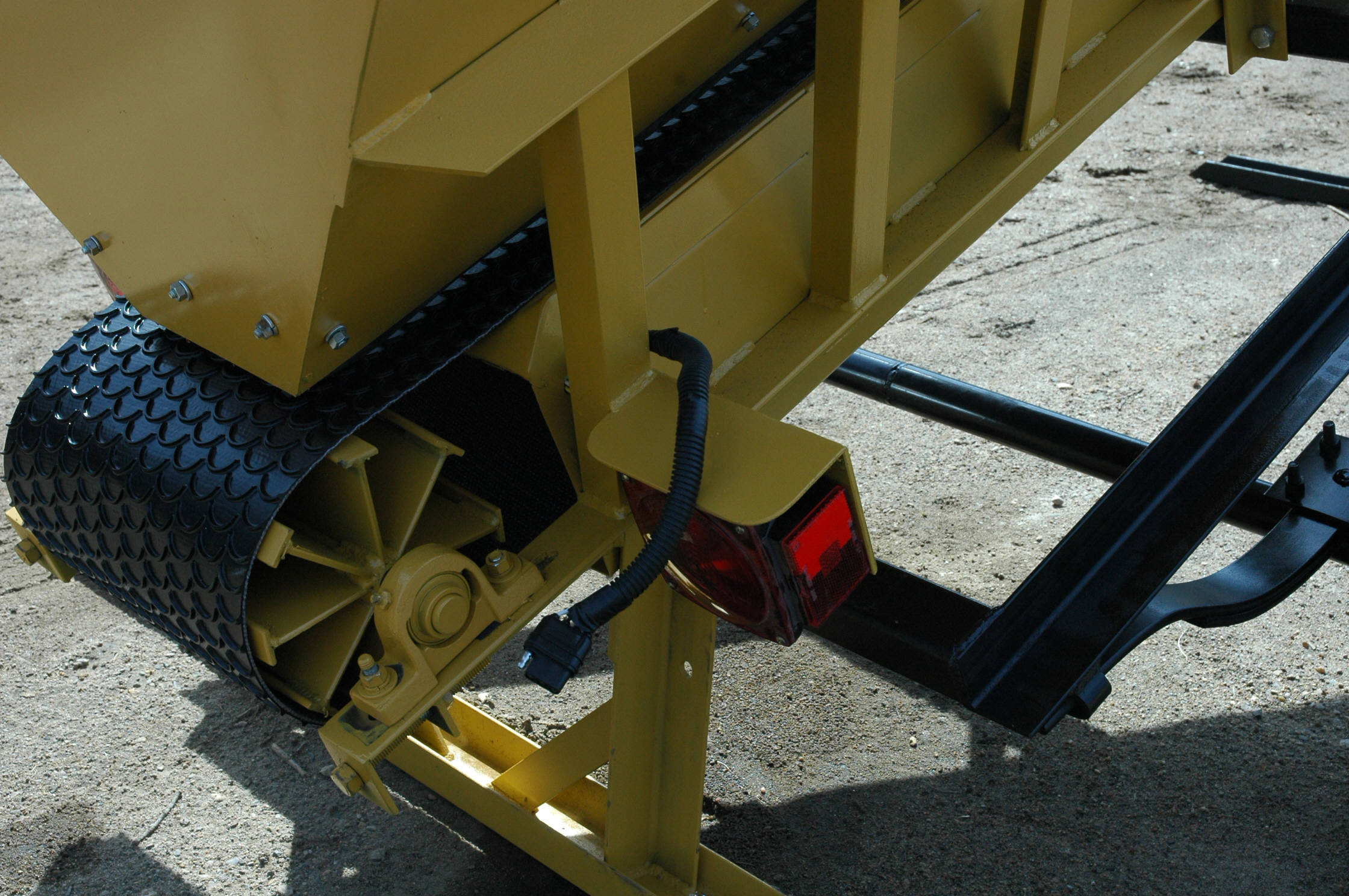

12-feet Feed Conveyor

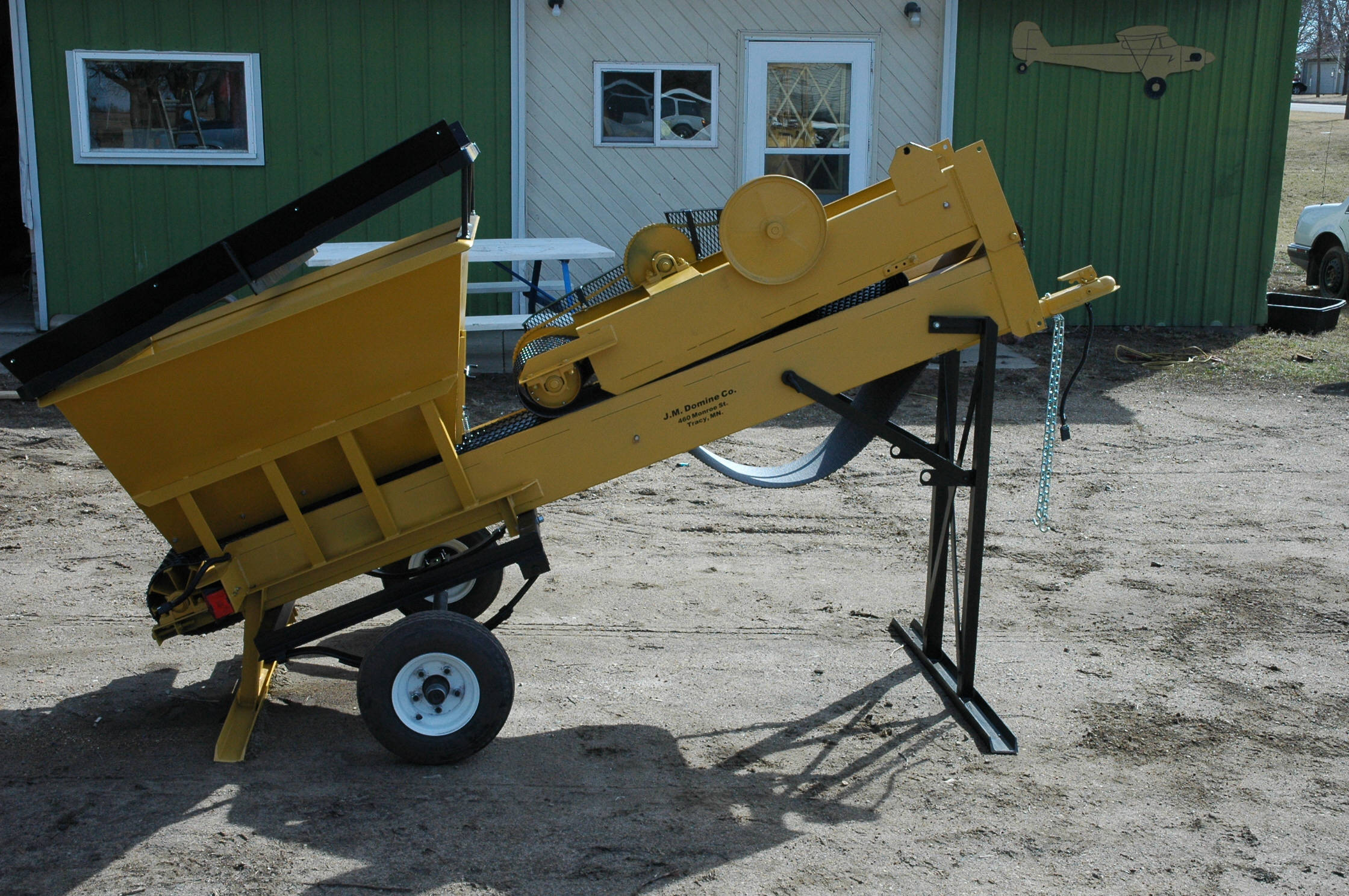

12-feet Feed Conveyor

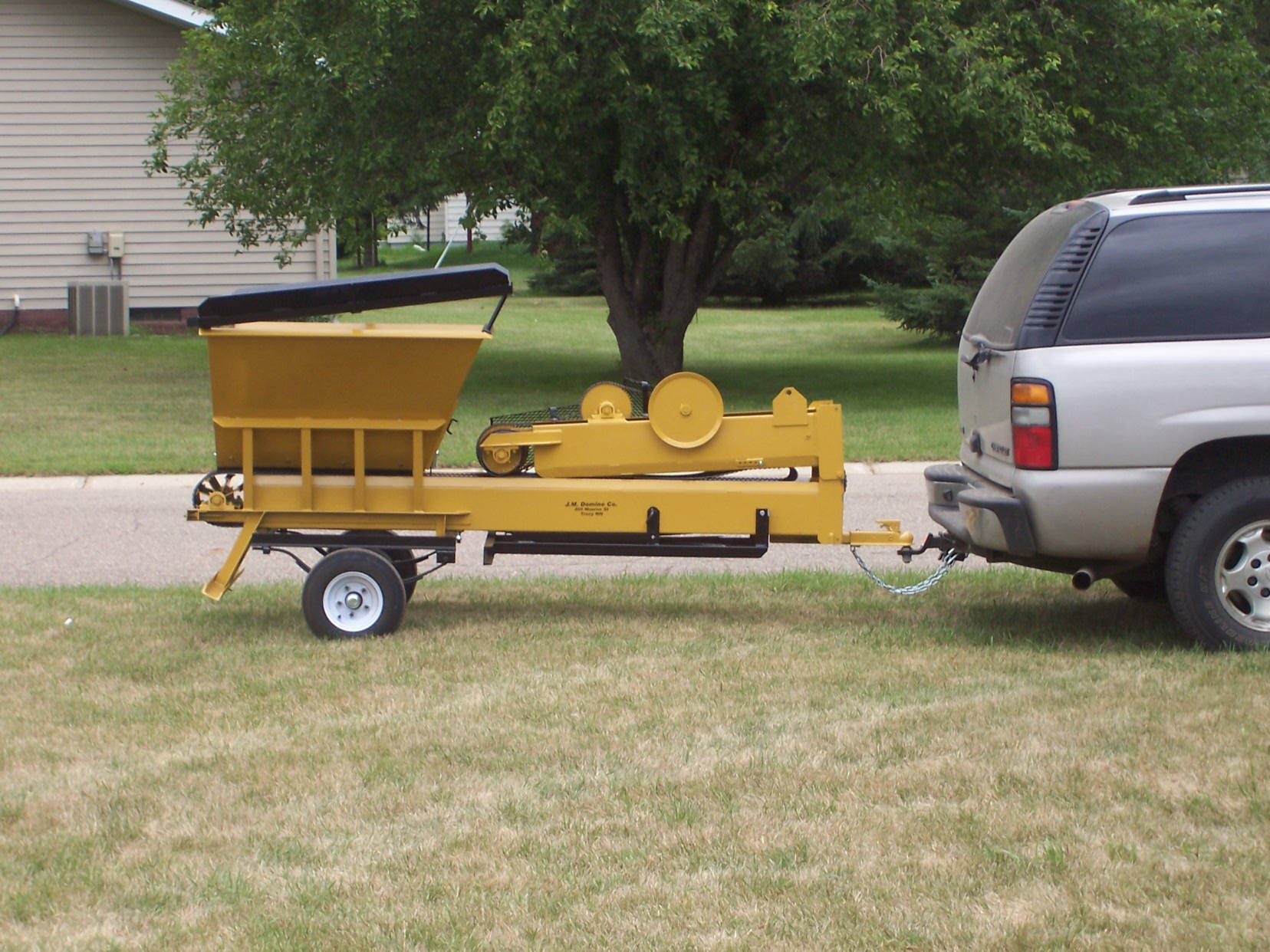

12-feet Feed Conveyor

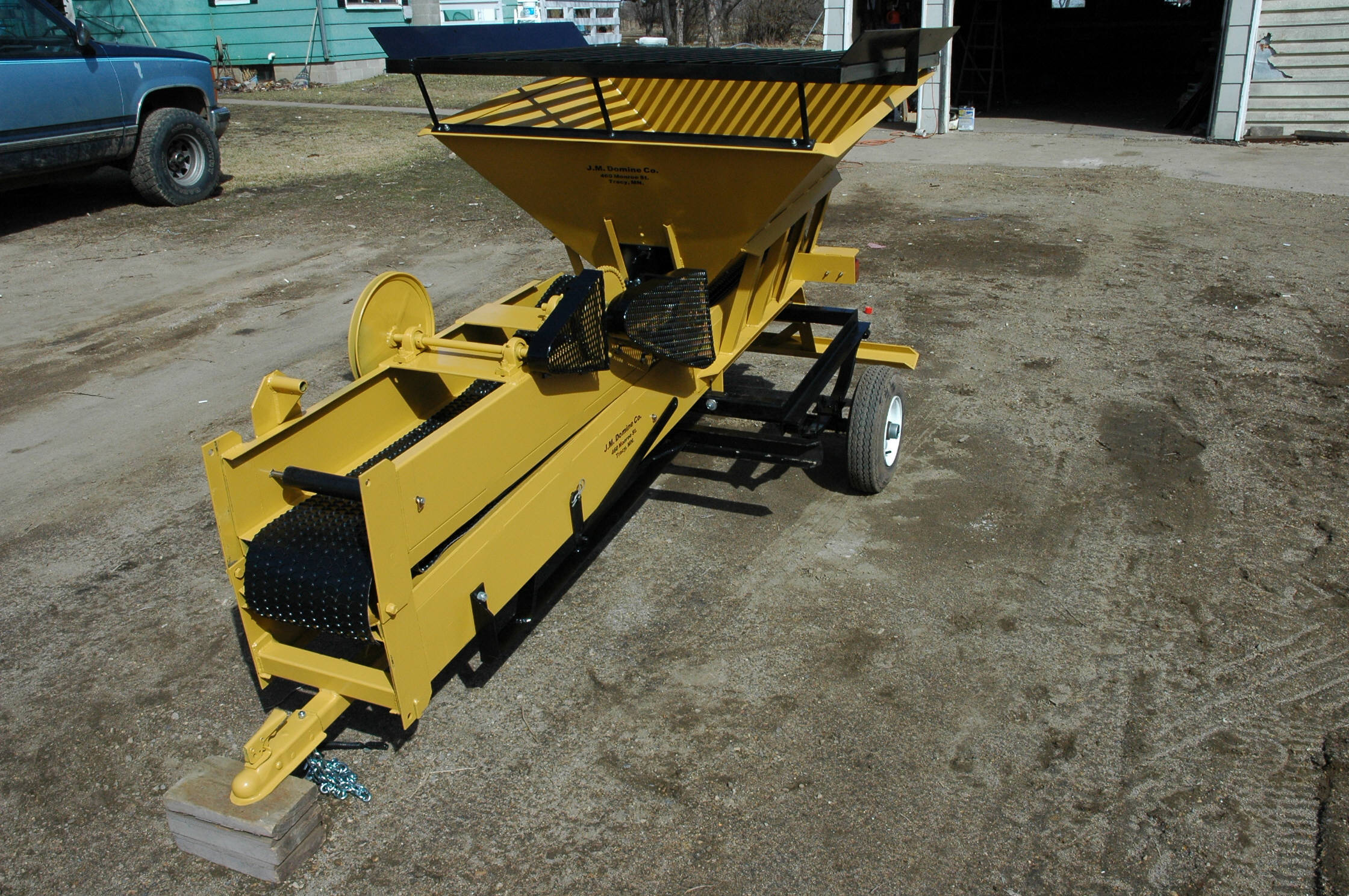

12-feet Feed Conveyor

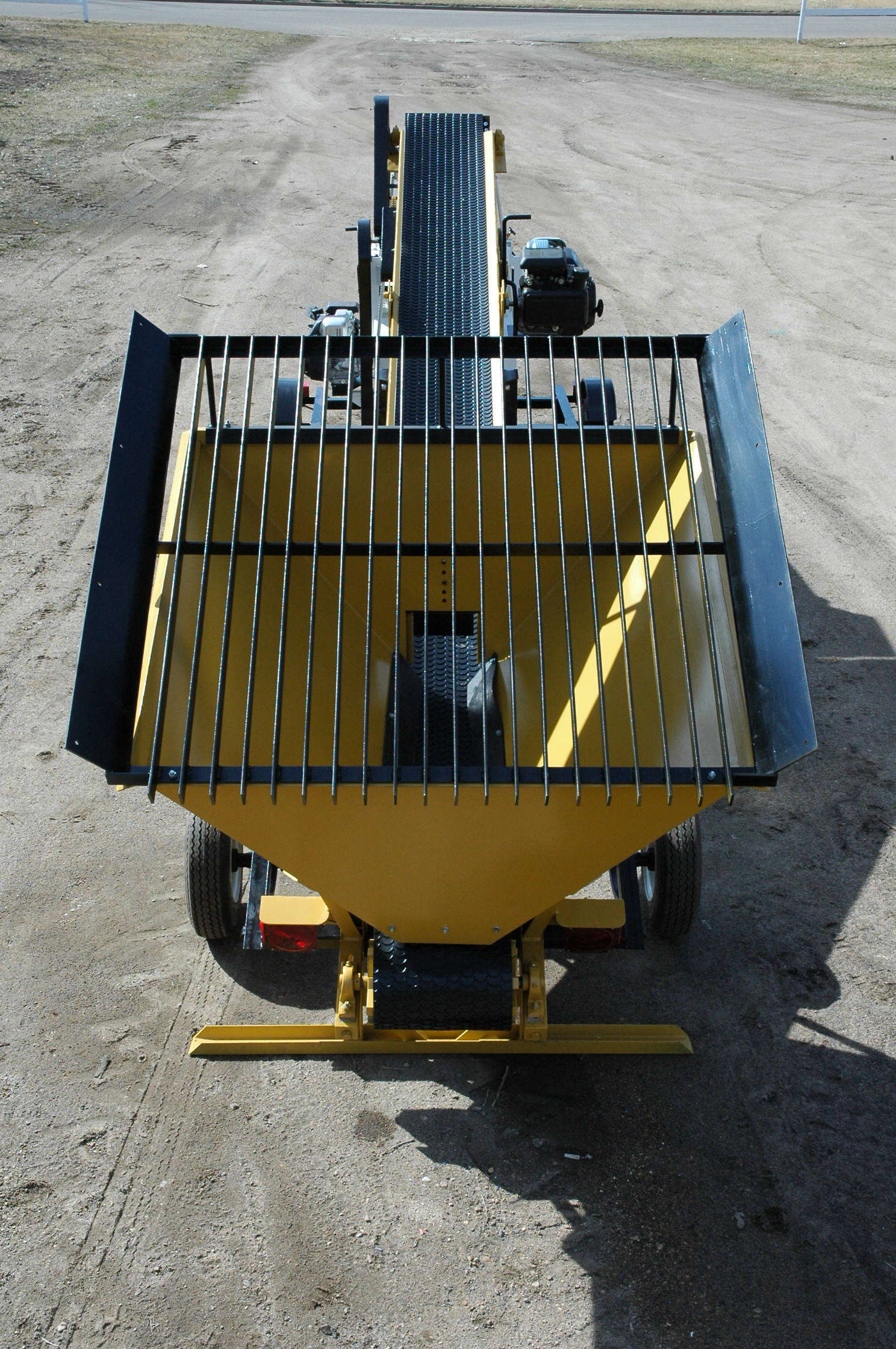

12-feet Feed Conveyor

12-feet Feed Conveyor

12-feet Feed Conveyor

12-feet Feed Conveyor

12-feet Feed Conveyor
