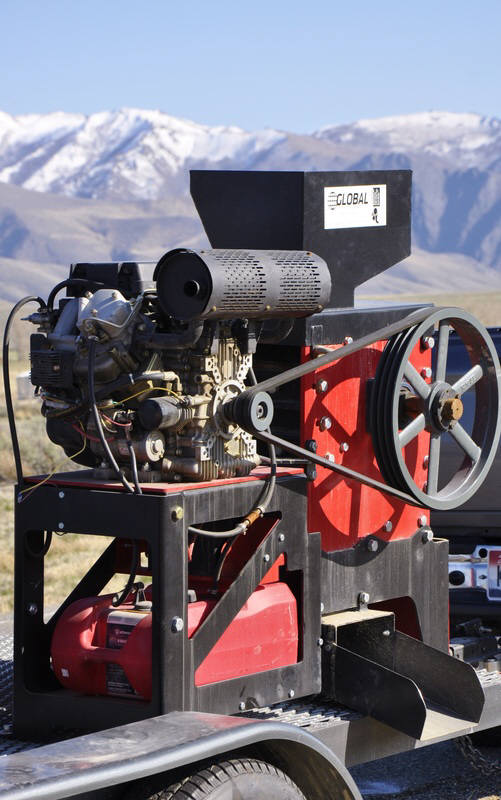

10-foot Wide Jaw Rock Crusher Features:

• The GME10 Jaw Rock Crusher is an assembled jaw crusher that is ready to use immediately upon receipt.
• The Jaw Rock Crusher is able to crush material up to 8" (205mm).
• The Jaw Rock Crusher is able to adjust the final output size from 1/4" (6mm) to 3" (76mm).
• The Jaw Rock Crusher can be fitted with an electric motor, gas engine, diesel engine or no engine.
• The flange and pillowblock bearings are the top of the line Blue Brute Bearings; these rugged bearings are used in the most harsh testing environments like rock crushing.
• The shaft is 2.4" (60mm) at the cam shaft and 2" (50mm) at the drive shaft.
• The jaw rock crusher wear plates are 3/4" (19mm) and are made of a hard faced 450 Brinnel Hardness Material.
• Also available is an upgraded cast manganese / chrome wear plates.

Specs:

• Drive System: 20HP Gas Engine / 18HP Diesel Engine / 10HP Electric Motor
• Height: 48" (1220 mm)
• Width: 32" (812 mm)
• Length: 56" (1422 mm)
• Weight: approx. 950 pounds (430 kg)
• Jaw Size: approx. 10" (254 mm) wide x 4 to 6" (102 - 152 mm) deep
