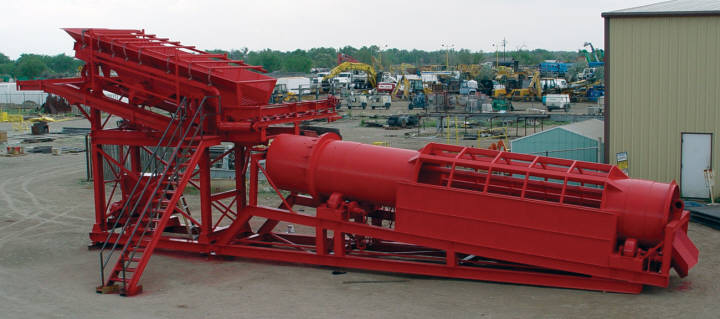

Trade and Export of New & Used Gold Mining Equipment, Supplies and Gold Prospecting Tools Call 1 (303) 659-8065. GEO-S7 - Skid-Mounted Trommel Plant GEO-S7 (175 to 200 Tons per hour) Skid Mounted Trommel Plant with pre-washing vibratory feeder . Pre-grizzly feeder and lattice feed conveyor can be added at your request. Power Requirement is 100 KW. Water requirement is 1,200 gallon per minute (4542 liters per minute.) Generator and water pump not included in price.
Our gold trommels have a full power 4 point drive system (which eliminates the chain drive), is fully reversible, and has a full variable speed control. Testing showed that some of the biggest complaints with trommels was screen blockage, so we have taken and installed full rubber octagon screening media to help eliminate this issue, and expensive but needed adaptation. Another advantage with this screen media, is it has 10 to 15 times the life of steel. Additionally, the screen media snaps into place which only take minutes instead of days or weeks as with some other systems. Results will vary depending screens, water and material conditions. |
